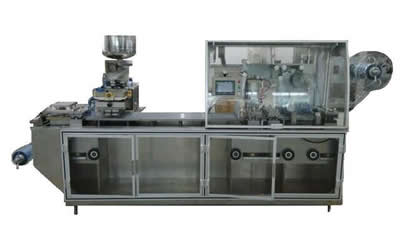

DPP-250M 平板式铝塑泡罩包装机
技术参数
No.
Item
Parameters
1
Output
40-60 strokes/Min for ALU/PVC;
15-30 strokes/min for ALU/AU
2
Maximum Form Area
115×250 mm
3
Piston Stroke
40~120 mm
4
Card Size
Standard
57×80 mm
Reference standard
(40 x 100) 300 blisters, (57 x 70) 240 blisters,
(42 x 102) 300 blisters , ( 35 x 80) 360 blisters/Min Alu PVC
5
Grains per Card
according to user’s requirements
6
Package Material
Nontoxic PVC hard pieces
（0.15~0.40）×250mm accord GB5663-8A
PTP Aluminum Foil
（0.05~0.17）×250mm accord GBl2255
Paper
（50~100）g/m2×250 mm （Scroll Aperture 70~76mm）
7
Heating Power
Upper warm up board
1.5KW
Nether warm up board
1.5KW
Heat-seal warm up
1.5KW
Batch number warm up
0.5KW
8
Main motor power
1.5KW
9
Main electromotor Power
380V 50Hz 6.5 kw
10
Air Pump
>0.1m3 （self-provided） pressure：0.6~0.8Mpa
11
Die Cooling
Tap water or Circulating water：60 L/H
12
Overall Dimensions
3520×850×1780mm （with bottom）
13
Total Weight
About 2000 kg
